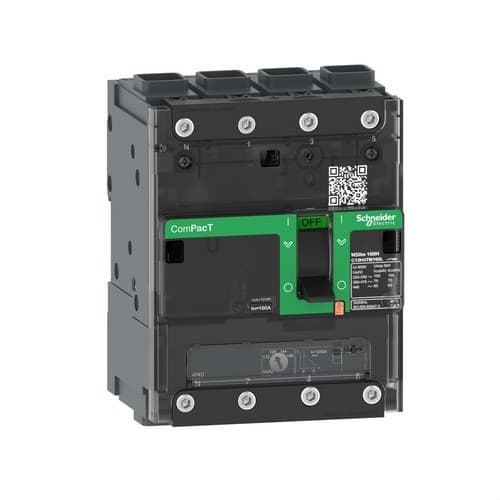

ComPacT NSXm160B Circuit Breaker 25kA AC 4P4R 160A TMD ELINK

The Schneider Electric ComPacT NSXm160B 25kA AC 4P4R 160A TMD ELINK circuit breaker is a compact, efficient, and highly reliable solution designed to protect low-voltage electrical systems in industrial and commercial applications. With a breaking capacity of 25kA at 415V AC, this 4-pole (4P4R) circuit breaker is optimised to offer robust protection in critical conditions, ensuring continuity of power supply and the safety of connected equipment.

The ComPacT NSXm160B is one of the smallest moulded case circuit breakers on the market, with dimensions of only 108 mm wide, 137 mm high, and 80 mm deep. This compact design allows for easy integration into electrical cabinets and power distribution systems, occupying minimal space without sacrificing protection capacity. Its reduced size is ideal for applications where space is limited and high-performance protection is required.

This model incorporates Schneider Electric's innovative Everlink technology, ensuring a stable and secure connection, even in environments with vibrations or thermal fluctuations. Everlink reduces the risk of loose or faulty connections, enhancing system safety and long-term operational reliability. Additionally, the breaker offers the possibility of both DIN rail and plate mounting, providing additional flexibility in installation, adapting to different electrical panel configurations.

The thermal-magnetic (TMD) control unit incorporated in the ComPacT NSXm160B provides adjustable protection against thermal overloads and short circuits, ensuring that the electrical system is protected from current variations that could damage equipment or compromise installation safety. This control unit combines thermal protection with a long delay (L) for overloads, magnetic protection with a short delay (I) for short circuits, and instantaneous protection (G), guaranteeing a fast and precise response to any electrical fault.

Key Technical Specifications:

• Breaking Capacity (Icu): 25kA at 415V AC, with additional capacities of 50kA at 220/240V AC and 20kA at 440V AC, allowing effective protection at different voltage levels.
• Rated Current (In): 160A at 40°C, suitable for low-voltage applications requiring reliable and durable protection.
• Rated Operational Voltage (Ue): 690V AC 50/60 Hz, ensuring adaptability to various power networks.
• TMD Control Unit (thermal-magnetic): Provides adjustable overload protection and fixed magnetic protection against short circuits, optimising system safety.
• Flexible Mounting: Compatible with DIN rail or plate mounting, facilitating integration into different types of electrical panels.
• Everlink Technology: Offers secure and stable connections, even in demanding conditions, reducing the risks of failures due to unstable connections.

The ComPacT NSXm160B circuit breaker complies with international standards IEC 60947, CCC, and EAC, ensuring compliance with the highest safety and performance standards worldwide. This certification makes it ideal for use in a wide range of applications, including demanding industrial environments where safety and reliability are paramount.

Additional Features:

• Ergonomic Design: Visible and accessible auxiliaries from the outside improve the ease of installation and maintenance, reducing downtime.
• Advanced Protection: The LIG protection functions (overload, short circuit, and instantaneous protection) ensure that the system is protected against any eventuality, minimising the risks of damage to connected equipment.
• Compliance with International Standards: The ComPacT NSXm160B has been designed and tested to comply with IEC 60947 standards and other global regulations, ensuring its safety and performance in any installation.

Key Benefits:

• Space Saving: Thanks to its compact design, this circuit breaker occupies less space in electrical cabinets, facilitating installation in electrical panels with limited space.
• Ease of Installation: Everlink technology and the options for DIN rail or plate mounting significantly reduce installation times, improving work efficiency.
• Reliable Protection: The TMD control unit guarantees complete and adjustable protection against overloads and short circuits, providing peace of mind at all times.

The Schneider Electric ComPacT NSXm160B 25kA AC 4P4R 160A TMD ELINK circuit breaker is an ideal protection solution for low-voltage electrical systems requiring high efficiency, reliability, and ease of installation. With its compact design, advanced technology, and flexible mounting capability, this circuit breaker provides robust and durable protection for a wide range of applications, ensuring operational continuity and safety in industrial and commercial installations.
