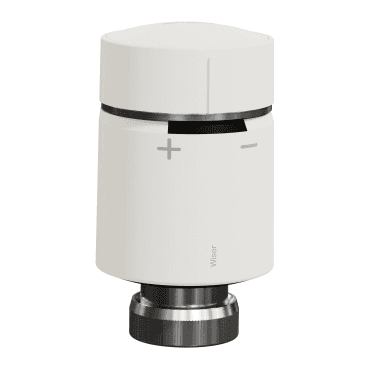

Schneider Electric Wiser Radiator Thermostat

Main Features

• Individual room control for enhanced comfort
• Zigbee connectivity and mobile app control
• Energy savings by adjusting only where needed

Description of the Schneider Electric Wiser CCTFR6100 Radiator Thermostat

The Schneider Electric Wiser CCTFR6100 radiator thermostat is an advanced solution for smart heating control in water radiator installations. Designed to manage temperature individually in each room, it optimizes thermal comfort and reduces energy consumption by adapting operation to the user's real needs.

This device is part of the Schneider Electric Wiser ecosystem and is intended to work with the Wiser Hub Generation 2, enabling remote control via the Wiser Home app. Thanks to this integration, you can adjust the temperature, schedule heating times, and improve system efficiency from anywhere.

Precise Control and Easy Adjustment

The thermostat allows you to set the temperature within a range of 5 to 30 °C, with an adjustment accuracy of 0.5 °C, offering detailed environmental control. It features a rotating cap for direct manual adjustment on the device itself, ideal for quick changes without needing the app.

Additionally, it includes multi-color LED indicators to easily identify the device's operating status.

Connectivity and Smart Control

The unit uses 2.4 GHz Zigbee wireless communication, with a range of up to 50 meters under optimal conditions, ensuring stable integration within the Wiser smart home system. This connectivity allows for remote heating control, improved energy management, and increased user comfort.

Versatile Installation and Compatibility

The kit includes everything needed for easy installation on compatible radiator valves. It comes with an adapter for Danfoss RA valves and a standard M30 x 1.5 nut, making it easy to integrate with a wide variety of radiators.

• 2 AA 1.5V alkaline batteries
• Adapter for Danfoss valves
• M30 x 1.5 nut

Design and Materials

Made from high-resistance thermoplastic, this thermostat is designed for vertical mounting and withstands demanding operating conditions. It is suitable for water heating systems, with a continuous working temperature of up to 73 °C and a maximum of 110 °C.

Dimensions

• Height: 93 mm
• Diameter: 51 mm

Technical Specifications

• Reference: CCTFR6100
• Range: Wiser
• Product type: Radiator thermostat
• Application: Heating
• Control: Manual, remote, and via app
• Temperature range: 5 to 30 °C
• Adjustment accuracy: 0.5 °C
• Communication: Zigbee 2.4 GHz
• Radio power: 13 dBm
• Range: up to 50 m
• Power supply: 2 AA 1.5V batteries
• Material: Thermoplastic
• Mounting: Vertical
• Fluid: Water
• Continuous working temperature: 73 °C
• Maximum temperature: 110 °C
• Protection rating: IP30
