Frame with Grinder and Cistern SFA Saniwall Pro Up for Cladding

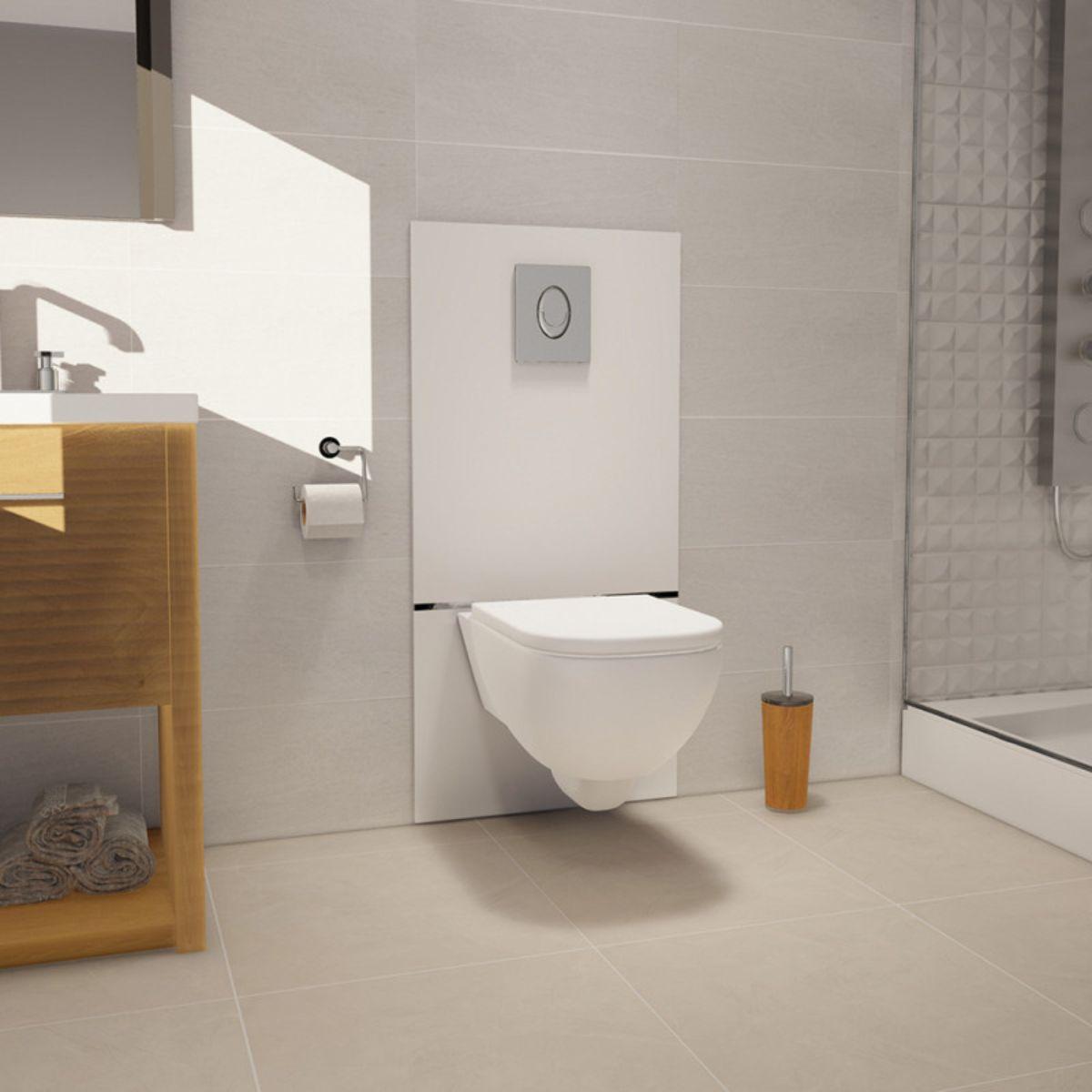

The SFA Saniwall Pro Up, reference WALLPROUPSTDAC, is a complete and elegant solution for installing a bathroom with wall-hung sanitary ware in spaces where gravity drainage is not available. This all-in-one system integrates perfectly inside the wall, remaining completely hidden behind two opaque white glass panels that provide a modern, aesthetic finish.

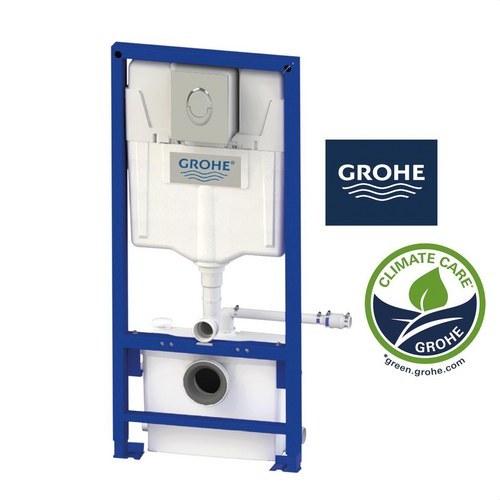

The system includes a Grohe frame with integrated cistern (3/6 L dual flush), a sanitary macerator with 3 inlets (one for the toilet and two side inlets of Ø40 mm for a washbasin, shower or bidet), and two high-strength tempered glass panels that provide easy access to the components for any maintenance operation.

The built-in macerator can discharge wastewater up to 5 meters vertically or 100 meters horizontally, using a pipe with a diameter of 22, 28 or 32 mm. Operation is automatic, discreet and efficient, with a 400 W motor and a noise level of only 47 dB(A). It activates autonomously each time any of the connected sanitary fixtures is used.

The unit is ideal for renovations in basements, attics, extensions or any area where conventional drainage cannot be installed. The macerator is designed to handle water up to 35 °C and features a pre-installed non-return valve, as well as an activated carbon filter that neutralizes possible odors.

Included components

• Grohe frame with 3/6 L cistern and flush button
• Sanitary macerator with 3 inlets
• Non-return valve
• Connectors and activated carbon filter

Technical specifications

• Number of inlets: 3 (Ø100 mm for WC, Ø40 mm for shower, bidet or washbasin)
• Discharge diameter: Ø22/28/32 mm
• Minimum shower tray height: 13 cm
• Maximum pumped liquid temperature: 35 °C

Electrical specifications

• Power supply: 220-240 V
• Frequency: 50-60 Hz
• Motor power: 400 W
• Protection rating: IP44
• Electrical class: I
• Noise level: 47 dB(A)

Identification and logistics

• Gross weight: 45 kg
• EAN code: 3308815074115
• Reference: WALLPROUPSTDAC

Main advantages

• Allows you to create a complete bathroom where conventional drainage is not available
• Aesthetic solution with white glass cladding
• Long-distance discharge with small-diameter piping
• Easy access to the macerator and cistern for maintenance
• Compatible with any standard wall-hung sanitary ware

The SFA Saniwall Pro Up system is the ideal solution for designing a modern, complete and functional bathroom in any space. Compact, efficient and easy to install, it combines design and technology to ensure total comfort and hassle-free drainage.
